Can LED RF Plasma Equipment be used for the production of micro - LEDs?

Hey there! As a supplier of LED RF Plasma Equipment, I often get asked if our gear can be used for the production of micro - LEDs. So, I thought I'd sit down and write this blog to give you the low - down on this topic.

First off, let's quickly go over what micro - LEDs are. Micro - LEDs are super tiny light - emitting diodes. They're much smaller than traditional LEDs, usually less than 100 micrometers in size. These little guys are a big deal in the display industry because they offer better brightness, contrast, and energy efficiency compared to other display technologies like OLEDs. They're being eyed for use in high - end TVs, smartwatches, augmented reality (AR) and virtual reality (VR) devices, and more.

Now, let's talk about LED RF Plasma Equipment. RF stands for radio frequency, and this type of plasma equipment uses radio - frequency energy to generate a plasma. Plasma is often called the fourth state of matter, and it's made up of ions, electrons, and neutral particles. In our equipment, the plasma can be used for a variety of processes such as cleaning, etching, and surface modification.

So, can our LED RF Plasma Equipment be used for micro - LED production? The short answer is yes, and here's why.

Cleaning and Surface Preparation

One of the most crucial steps in micro - LED production is cleaning and preparing the surfaces of the semiconductor materials. Any contaminants on the surface can lead to defects in the micro - LEDs, affecting their performance and reliability. Our RF Plasma Equipment is great at this. The plasma generated can break down and remove organic and inorganic contaminants from the surface of the semiconductor wafers. For example, it can get rid of residues left behind from the photolithography process, which is used to pattern the micro - LEDs on the wafer.

The ions in the plasma can physically bombard the surface, knocking off the contaminants, while the reactive species in the plasma can chemically react with the contaminants, turning them into volatile compounds that can be easily removed. This results in a clean and activated surface, which is essential for subsequent processes like epitaxial growth and bonding.

You can check out our RF Plasma Equipment for Semiconductor Applications to see how it's designed to handle these cleaning and surface preparation tasks in semiconductor manufacturing, including micro - LED production.

Etching

Etching is another important process in micro - LED production. It's used to define the shape and size of the micro - LEDs on the semiconductor wafer. Our LED RF Plasma Equipment can perform both dry etching and wet etching. Dry etching, in particular, is very precise and can be controlled accurately.

In dry etching using our RF Plasma Equipment, the reactive species in the plasma react with the semiconductor material, and the products of the reaction are removed by the gas flow in the chamber. This allows us to etch very fine features on the wafer, which is necessary for the small size of micro - LEDs. The radio - frequency energy can be adjusted to control the etching rate and the selectivity of the etching process, ensuring that only the desired areas are etched.

Surface Modification

Micro - LEDs need to be bonded to substrates or other components during the manufacturing process. The surface properties of the micro - LEDs and the substrates play a crucial role in the bonding strength and quality. Our RF Plasma Equipment can be used to modify the surface properties of these materials.

For example, it can increase the surface energy of the materials, which improves the wetting and adhesion during the bonding process. By bombarding the surface with ions and reactive species, we can introduce functional groups on the surface, making it more hydrophilic or hydrophobic as required. This surface modification helps to ensure a strong and reliable bond between the micro - LEDs and the substrates, reducing the risk of delamination and improving the overall performance of the micro - LED devices.

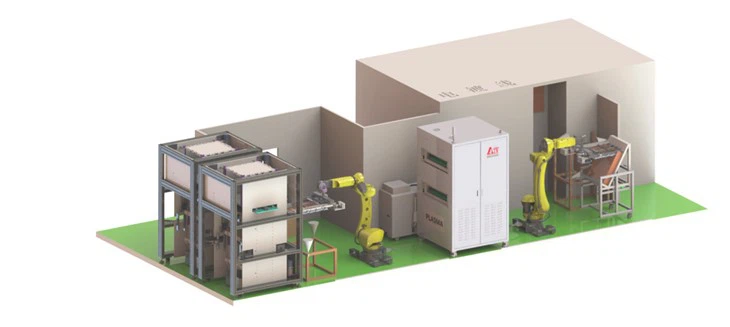

Our Vacuum Inline RF Plasma Equipment is well - suited for this kind of surface modification process in a continuous production line, ensuring high - efficiency and consistent results.

Epitaxial Growth

Epitaxial growth is the process of growing a thin layer of semiconductor material on a substrate with a specific crystal structure. This is a key step in micro - LED production as it determines the quality and performance of the micro - LEDs. Our RF Plasma Equipment can assist in this process by providing a clean and activated surface for the epitaxial growth.

The plasma treatment can remove any native oxide layers on the substrate, which can otherwise interfere with the epitaxial growth. It can also create a rough surface texture, which can enhance the nucleation of the semiconductor material during the growth process. This results in a more uniform and high - quality epitaxial layer, which is essential for the performance of the micro - LEDs.

LCD RF Plasma Equipment for Related Processes

In some cases, micro - LEDs are integrated with LCD (Liquid Crystal Display) technologies. Our LCD RF Plasma Equipment can be used for processes related to the integration of micro - LEDs with LCDs. For example, it can be used to clean and modify the surfaces of the LCD panels before the micro - LEDs are bonded or integrated. This helps to improve the compatibility between the micro - LEDs and the LCDs, resulting in better overall display performance.

Advantages of Using Our LED RF Plasma Equipment in Micro - LED Production

• High Precision: Our equipment allows for very precise control of the plasma processes. This is crucial for micro - LED production, where the size and quality of the micro - LEDs are extremely important.
• Consistency: We can ensure consistent results across multiple wafers and production runs. This is essential for mass - producing high - quality micro - LEDs.
• Versatility: Our LED RF Plasma Equipment can be used for multiple processes in micro - LED production, from cleaning to etching and surface modification. This reduces the need for multiple pieces of equipment, saving both space and cost in the production facility.
• Environmentally Friendly: Plasma - based processes are generally more environmentally friendly compared to some traditional wet - chemical processes. They use less chemicals and produce less waste.

Conclusion

In conclusion, our LED RF Plasma Equipment is a great fit for micro - LED production. It can play a vital role in various key processes, from cleaning and surface preparation to etching and surface modification. Whether you're a small - scale research lab or a large - scale manufacturing facility, our equipment can help you produce high - quality micro - LEDs more efficiently and cost - effectively.

If you're interested in learning more about how our LED RF Plasma Equipment can be used in your micro - LED production process or if you're looking to make a purchase, don't hesitate to get in touch. We'd be more than happy to have a chat with you and discuss your specific needs.
